Artillery ammunition

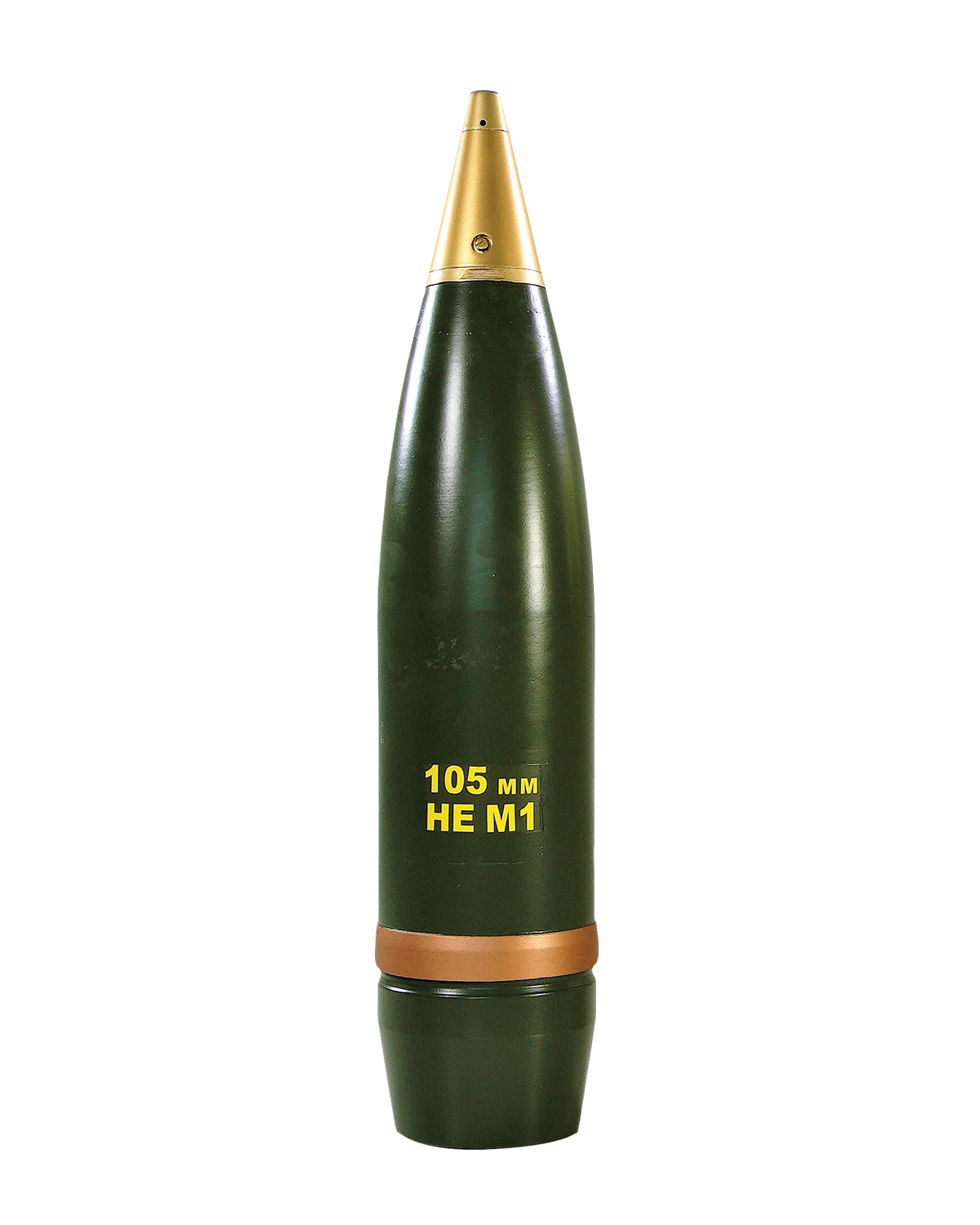

Technical specification:
Length of complete round: 790 mm
Weight of complete round: 18,15 kg
Projectile max. diameter: 105 mm

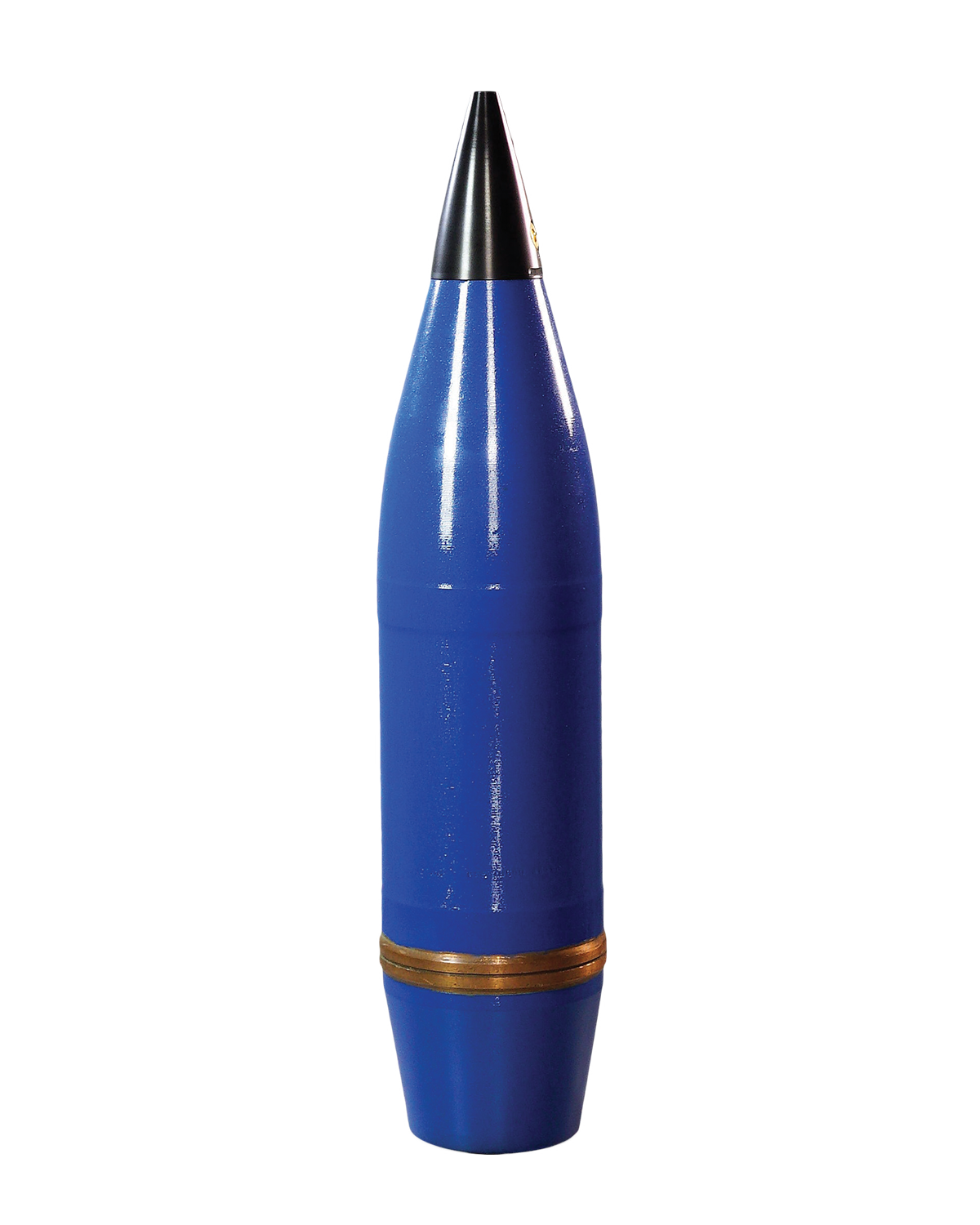

Technical specification:
Length of complete round: 790 mm
Weight of complete round: 20,049 kg
Projectile max. diameter: 105 mm

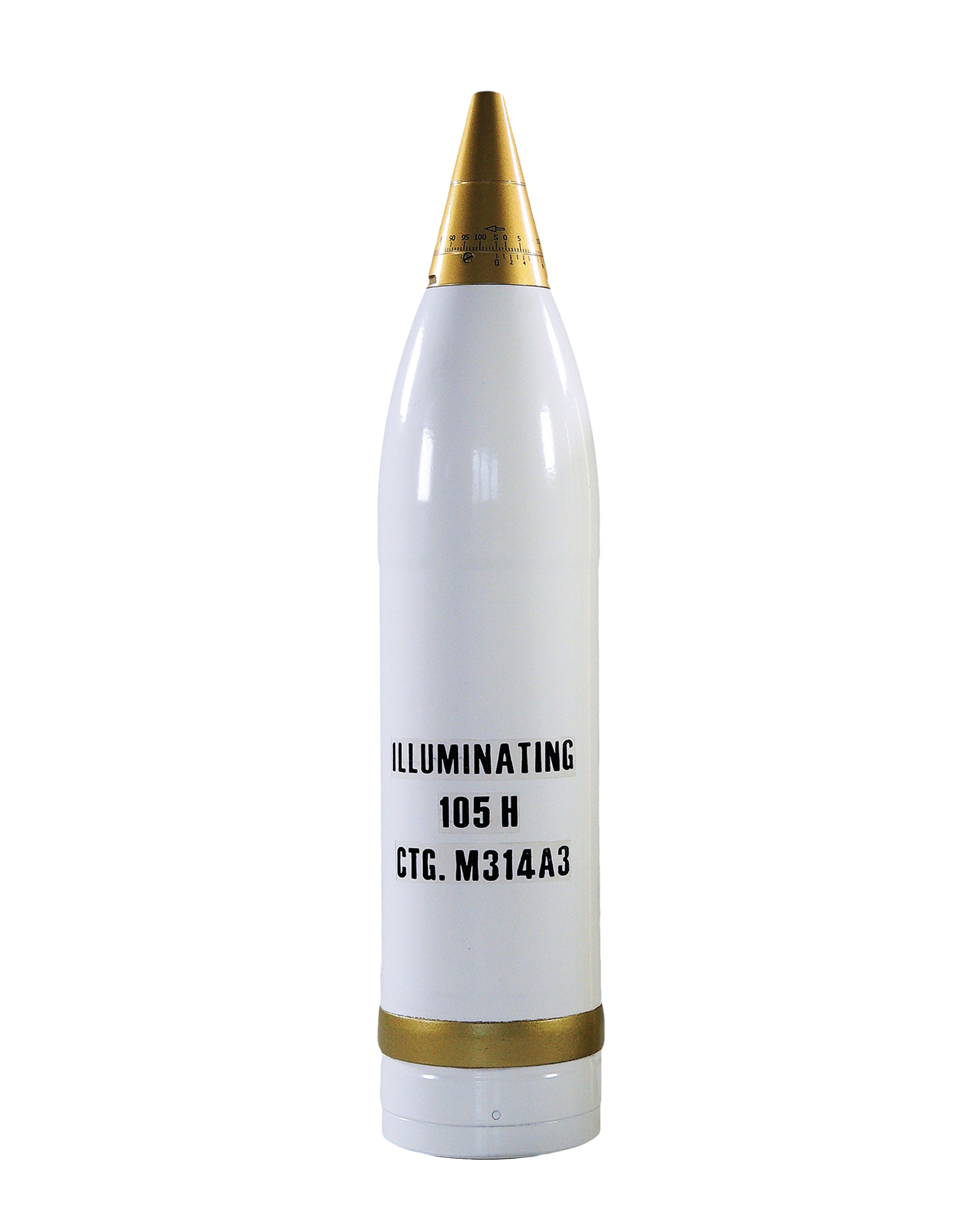

Technical specification:
Type: Illuminating
Shell weight: 14.6 kg
Weight of complete round: 18,6 kg nominal

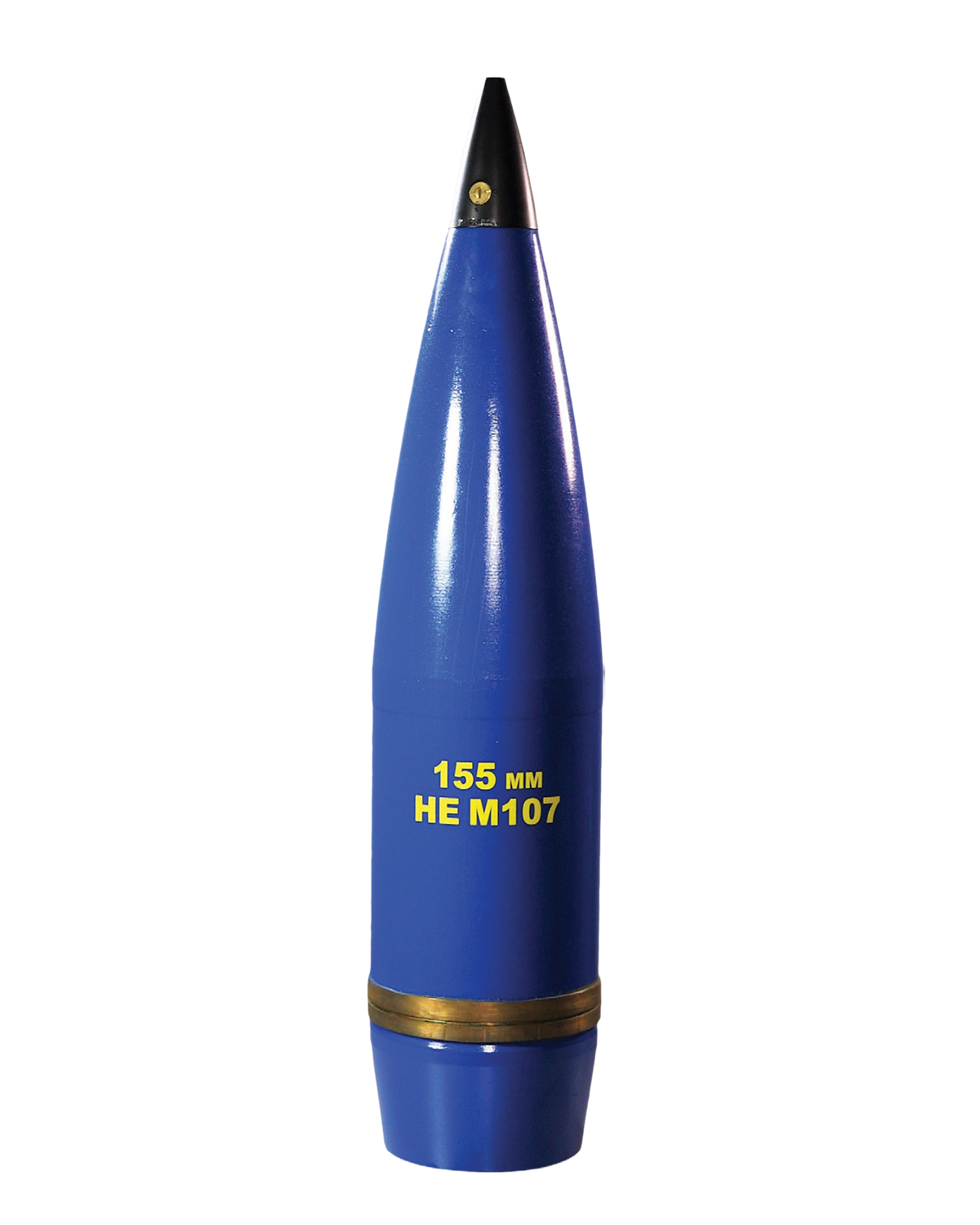

Technical specification:
Length of projectile: 785 mm
Weight of complete round: 27,000 kg
Projectile type: HE

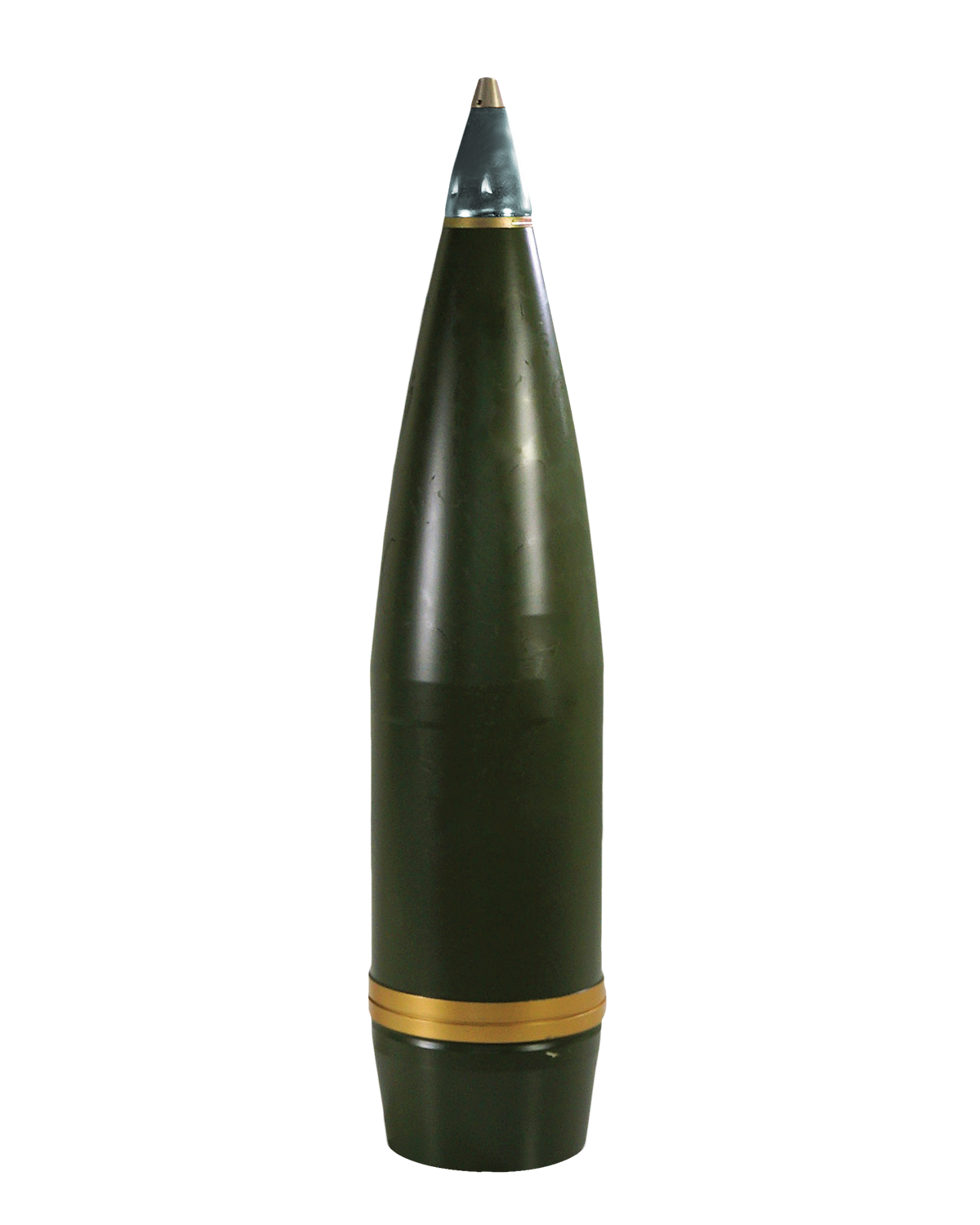

Technical specification:
Length of projectile: 600 mm
Weight of complete round: 21,900 kg
Projectile type: smoke

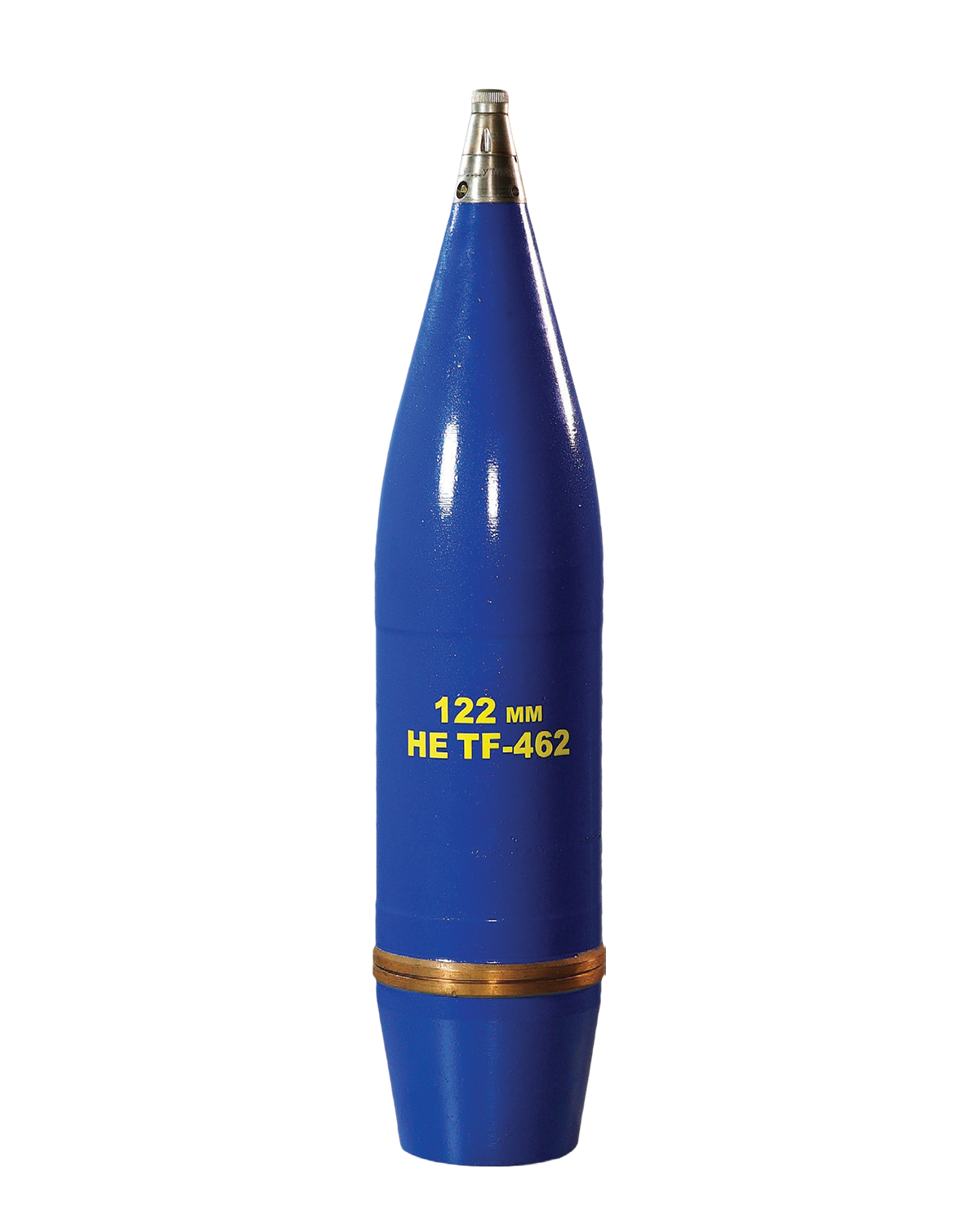

Technical specification:
Length of projectile, fused: 600 mm
Weight of projectile: 21,8 kg nominal
Type: HE

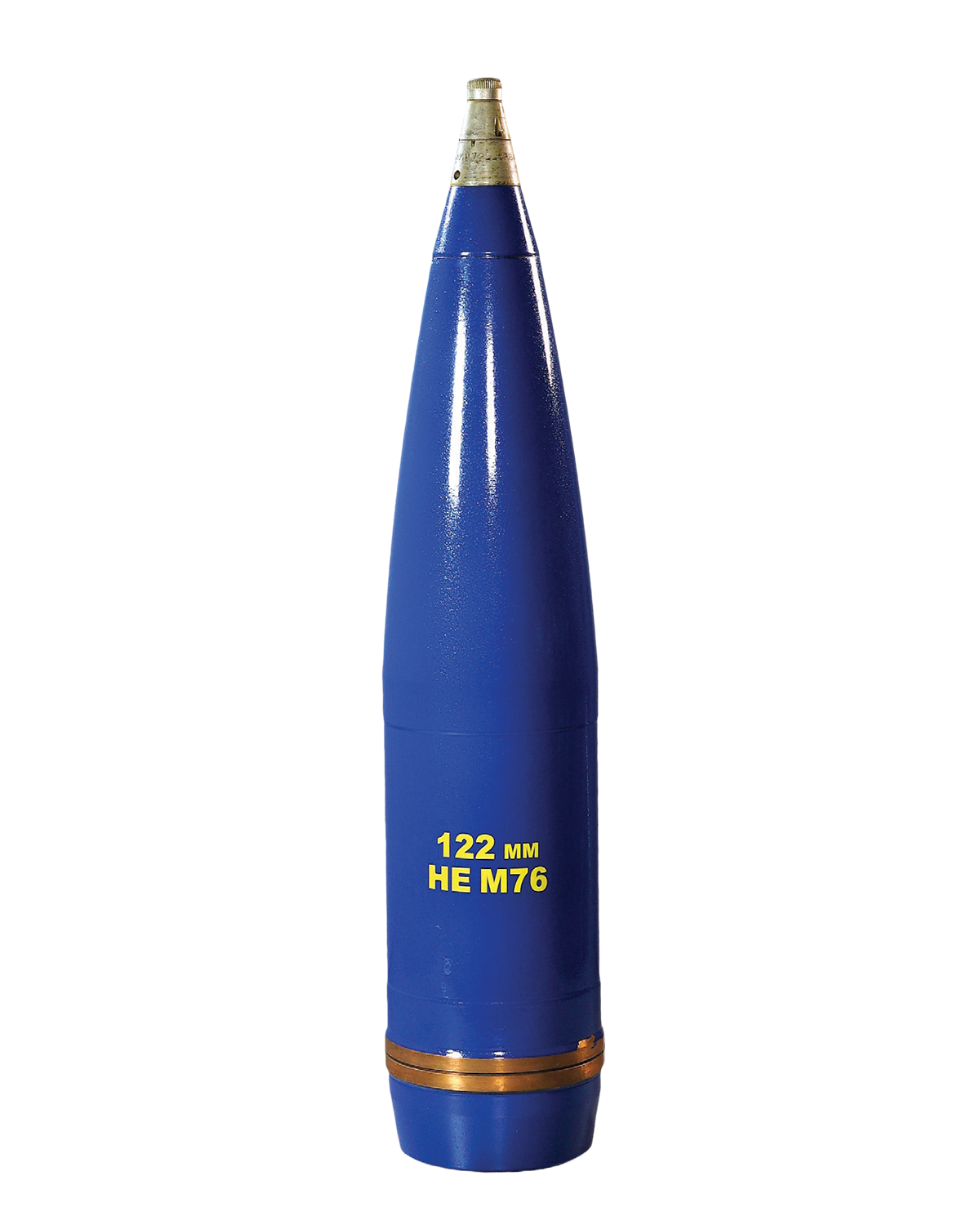

Technical specification:
Length without fuse: 655 mm
Weight of complete round: 40.8 – 42.9 kg
Projectile max. diameter: 122 mm

Technical specification:
Total Length of projectile: 605 mm
White phosporous filing weight: 7 kg
Total Weight, fused: 44.6 kg
